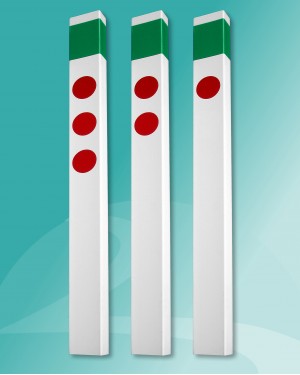

Near side marker post used on UK Motorways to countdown to emergency crossings on UK Motorways and Trunk Roads. These Type 3 posts are installed on the verges of both approaches to the crossing in place of Type 1 marker posts.
- Blue Vinyl for Motorway use
- Green Vinyl for Trunk Road use
Ground sockets are fixed using a peg as an anchor to provide secure installation. This enables socket-mounted posts to be removed when required, for example during grass cutting.
Socket Mounting Location - 300mm to 400mm outside hard shoulder / hard strip.
Position and Spacing in Relation to the Emergency Crossing
Posts are fixed at 100 m intervals.
- Type 3 (3) 300 m from crossing.
- Type 3 (2) 200 m from crossing.
- Type 3 (1) 100 m from crossing.
Dimensions
- Height 1100mm
- Width 100mm
- Diameter 50mm
- Weight 1kg
- Triangular profile
Ground Mounting Socket not included (available separately)
